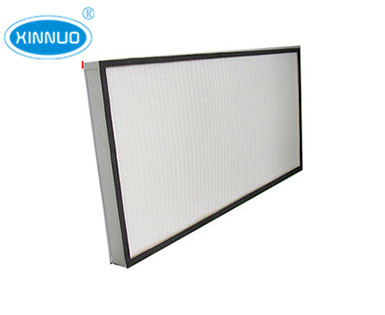

板式亞高效空氣過濾器
Plate and efficient air filter
特點Features
●阻力低、容塵量較大
●適用于空調通風系統的高效末端保護
●Low resistance, dust capacity
●Applicable to air conditioning and ventilation
system of high end protection
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金外框
●External frane：Aluminum alloy frame
●分隔物：熱熔膠
●Space: glue
●密封物：聚胺脂膠
●Sealant：Gel-glue
●濾料：玻纖濾紙或聚酯纖維（PP）
●Filter media：Glass fiber filter or polyester fiber (PP)
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數（Standard specification）
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 濾料Filter materials |
XN-10/12J | 610×610×69/80 | 1000/1200 | ≤125 | 95(F8)/99(F9) | 聚酯纖維 Polyester fibers(PP) 玻璃纖維 Glass fiber |
XN-15/18J | 915×610×69/80 | 1500/1800 | ≤125 | 95(F8)/99(F9) | |
XN-20/25J | 1220×610×69/80 | 2000/2500 | ≤125 | 95(F8)/99(F9) |
