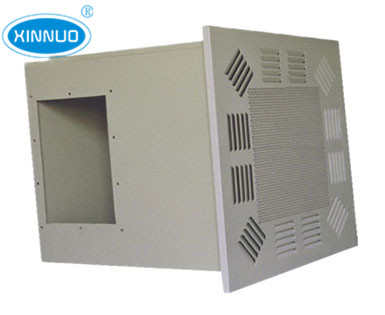

高效送風口
Efficient air diffuser
特點：Features
●外形美觀、結構簡單
●帶調節閥可調節風量
●適用于有隔板高效空氣過濾器
●Appearance, simple structure
●With adjustable air regulator
●Applicable to hepa filter
構成材料及運行條件
Materials and operating conditions
●框材：冷扎鋼板噴塑
●External frane：Lengzha steel spray
●風量調節：手動調節閥
●Operation: manual regulator
●過濾器：有隔板高效空氣過濾器
●Hepa filter: air filter
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數(Standard specification)
側面進風Lateral into wind | 頂部進風Top into the wind | 外形尺寸(mm)Shape dimension L×W×H | 過濾器尺寸(mm)Filter size L×W×H | 風量air (m3/h) | 進風官尺寸(mm)Into the official size A×B | 風管連接(mm)Duct connection C×D | 裝配尺寸(mm)Assembly size T×S×R×G | 吊環間(mm)Rings spacing距 |
XN-5J | XN-DF-5J | 370×370×530 | 320×320×220 | 500 | 200×200 | 250×250 | 438×438×294×294 | 344×344 |
XN-10J1 | XN-DF-10J1 | 534×534×530 | 484×484×220 | 1000 | 200×200 | 370×250 | 588×588×294×294 | 508×508 |
XN-10J2 | XN-DF-10J2 | 660×660×460 | 610×610×150 | 1000 | 320×250 | 370×300 | 716×716×358×358 | 634×634 |
XN-16J | XN-DF-16J | 680×680×530 | 630×630×220 | 1600 | 320×250 | 370×300 | 736×736×368×368 | 654×654 |
